There are two ways to access the metrics of an instance: from the Monitoring Manager view or via the Inspector pane.
The Monitoring Manager allows quick access to all running virtual instances within the contract. It also provides access to the configuration of alarms and actions.
1. In the DCD, open the Management option. A drop-down box displays.
2. Select Monitoring.

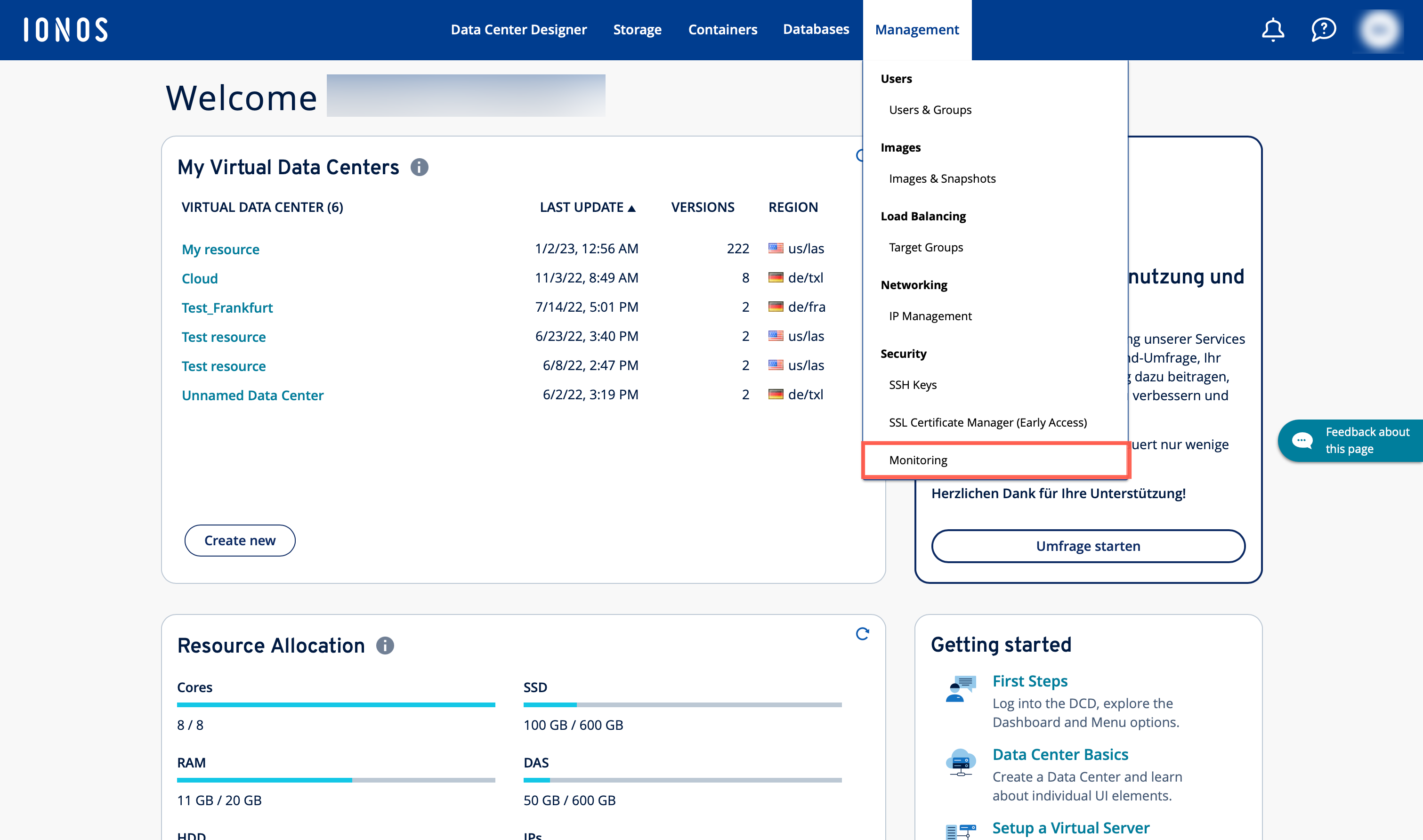

Monitoring Manager is accessible from the Menu and offers a view of all active resources
3. In the left panel, select the target Server. Metrics for the target server displays in the right-hand panel.

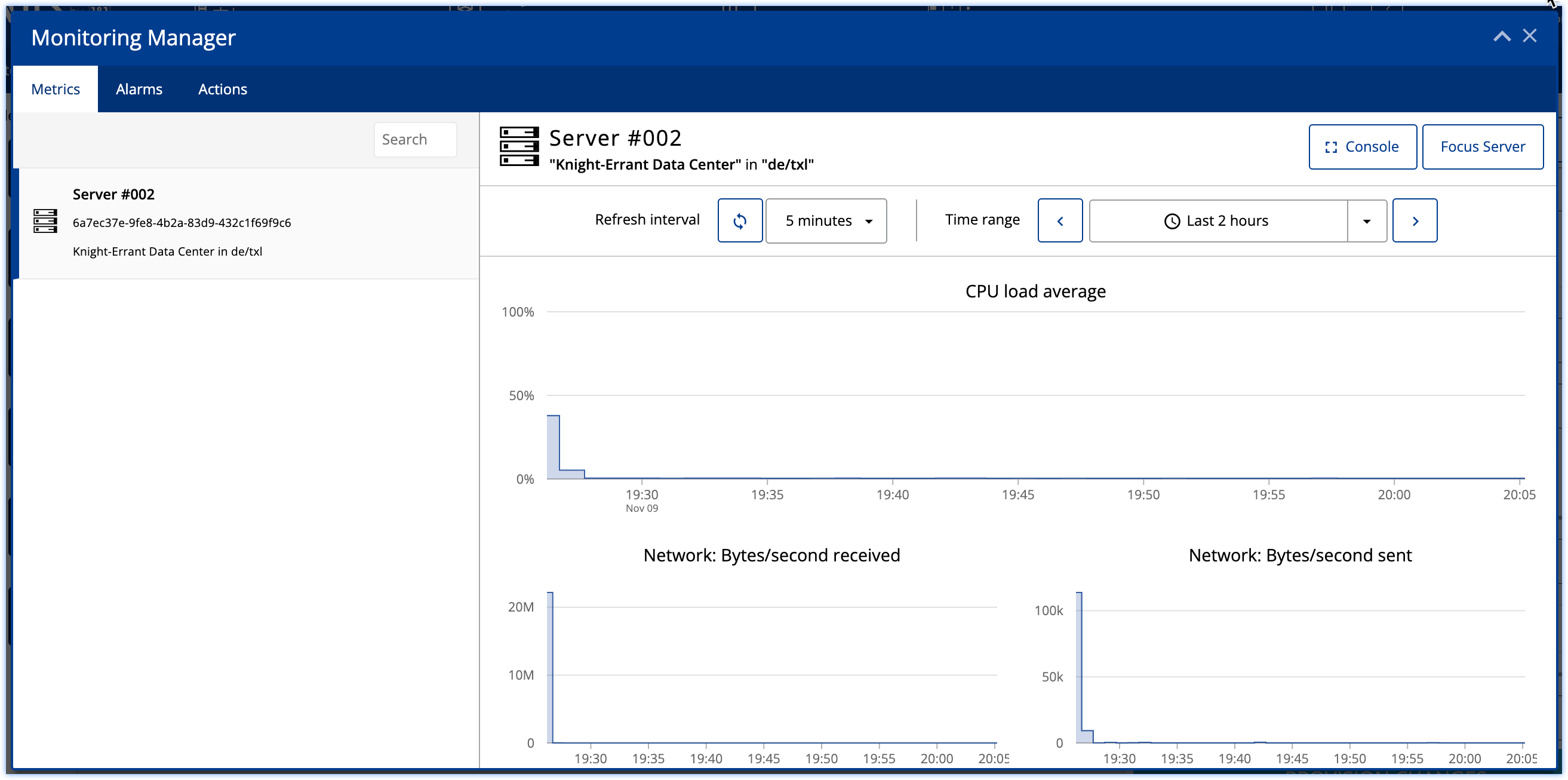

Each Server from the list on the left displays monitoring statistics in the view on the right side of the Manager
You can access MaaS via the properties panel of a virtual instance.
1. In the DCD, open your virtual data center.
2. Select your Server. The Inspector pane for this virtual instance displays on the right side of the window.
3. Click on the Metrics tab. The CPU utilization graph, followed by other graphs, displays showing the basic metrics for the last hour.

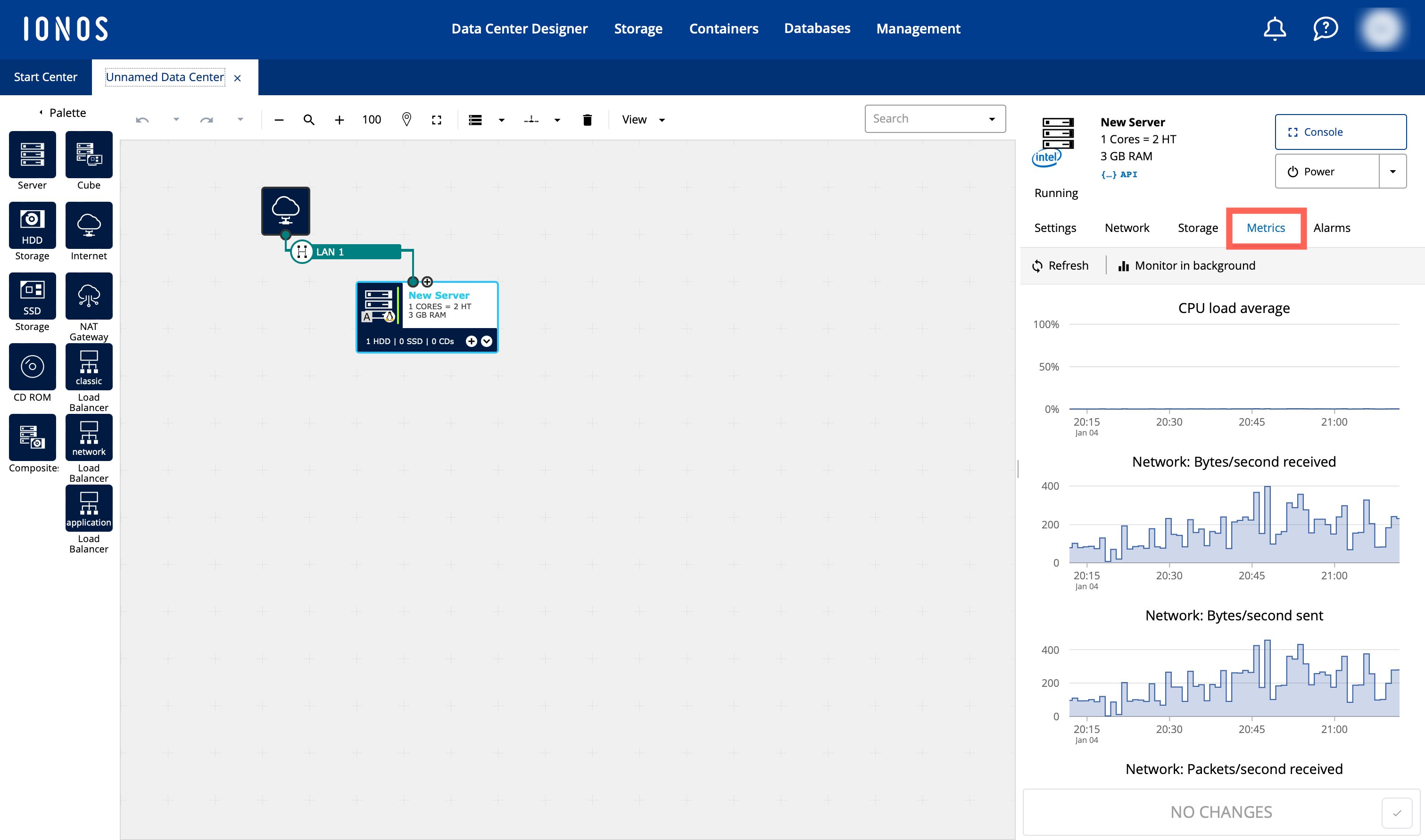

The Inspector pane gives you direct access to Server metrics. You can also choose to Monitor in Background from this pane
4. In the Inspector, you may select Refresh. The basic metrics are refreshed.
5. You can choose to monitor separately. In the Inspector, select Monitor in Background. A separate window displays. The graphs display an enlarged view. Additional information is available for each graph.

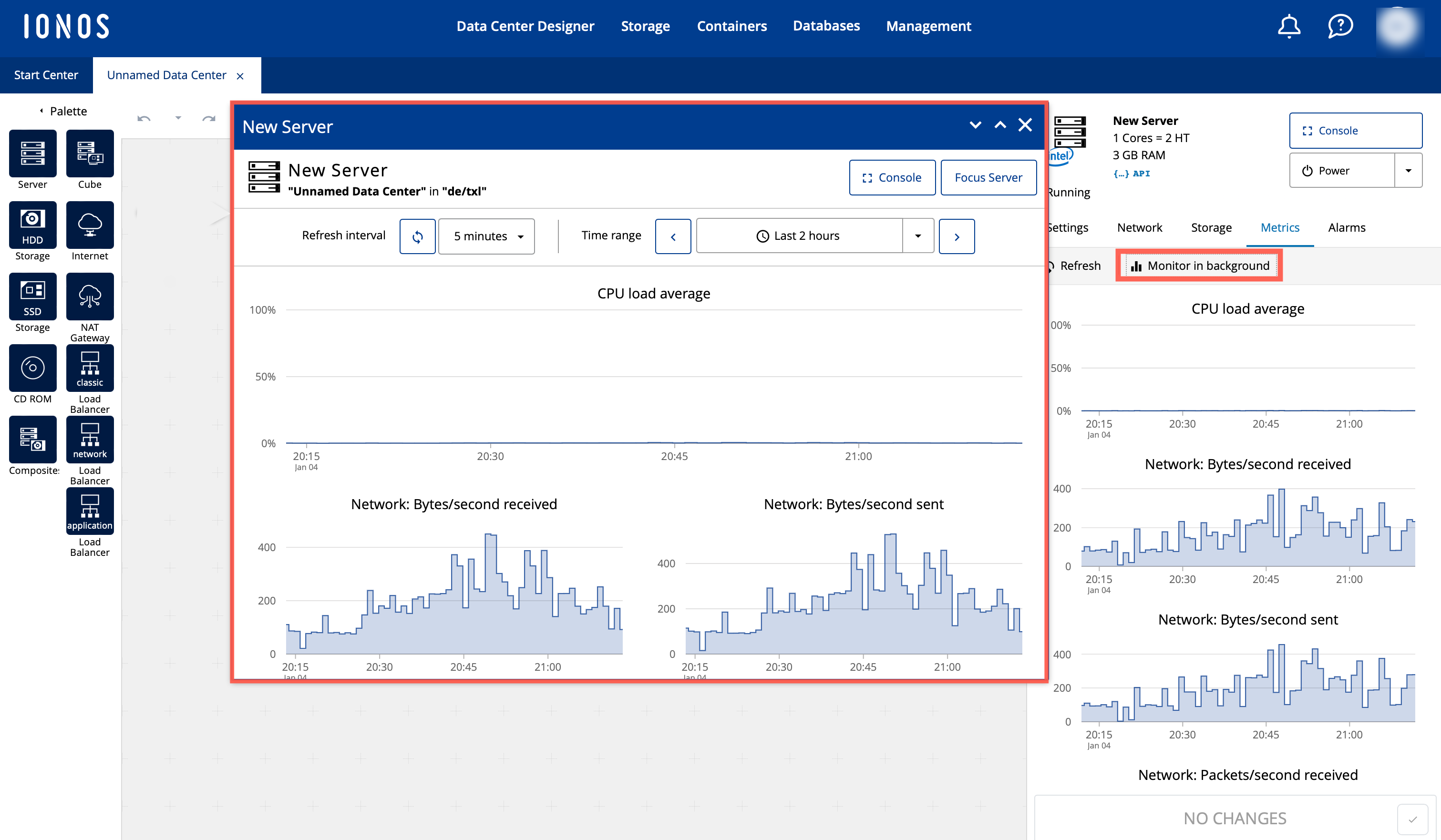

Click Monitor in Background to open a separate monitoring window
In the upper right corner of the pop-up window there are three buttons: minimize (down arrow), maximize (up arrow) and close (x). You to can either enlarge the view to the entire screen or reduce the view to a monitoring bar, which will remain active in the background.
The monitoring bar remains visible even when switching between VDCs. You can add multiple monitoring views of different virtual instances from different VDCs to this bar. Even if you close a virtual data center, the monitoring bar option will remain active.
The monitoring bar will disappear when you log out of the DCD.

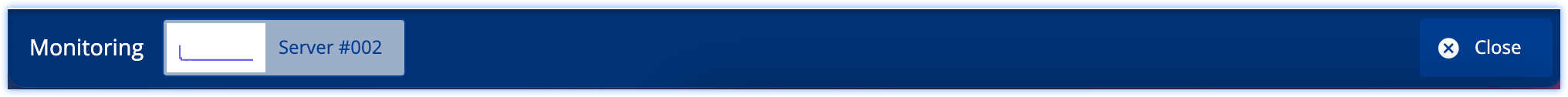

The monitoring bar when logging out of the DCD
If the VDC is closed, you can reopen the Monitoring Manager and also use the Focus Server option to load the VDC that contains the server instance. The server will be selected automatically. The relevant property panel will become available immediately.
In the Monitor in Background view, you may select the refresh interval as well as the time frame for data retrieval.
You can only choose a time frame of up to two weeks. If you select a wider time frame, MaaS will limit the data reported or it may return an error if no data is available. If you change one or both of these values, the view is refreshed. MaaS will display your latest chosen data in the graph.

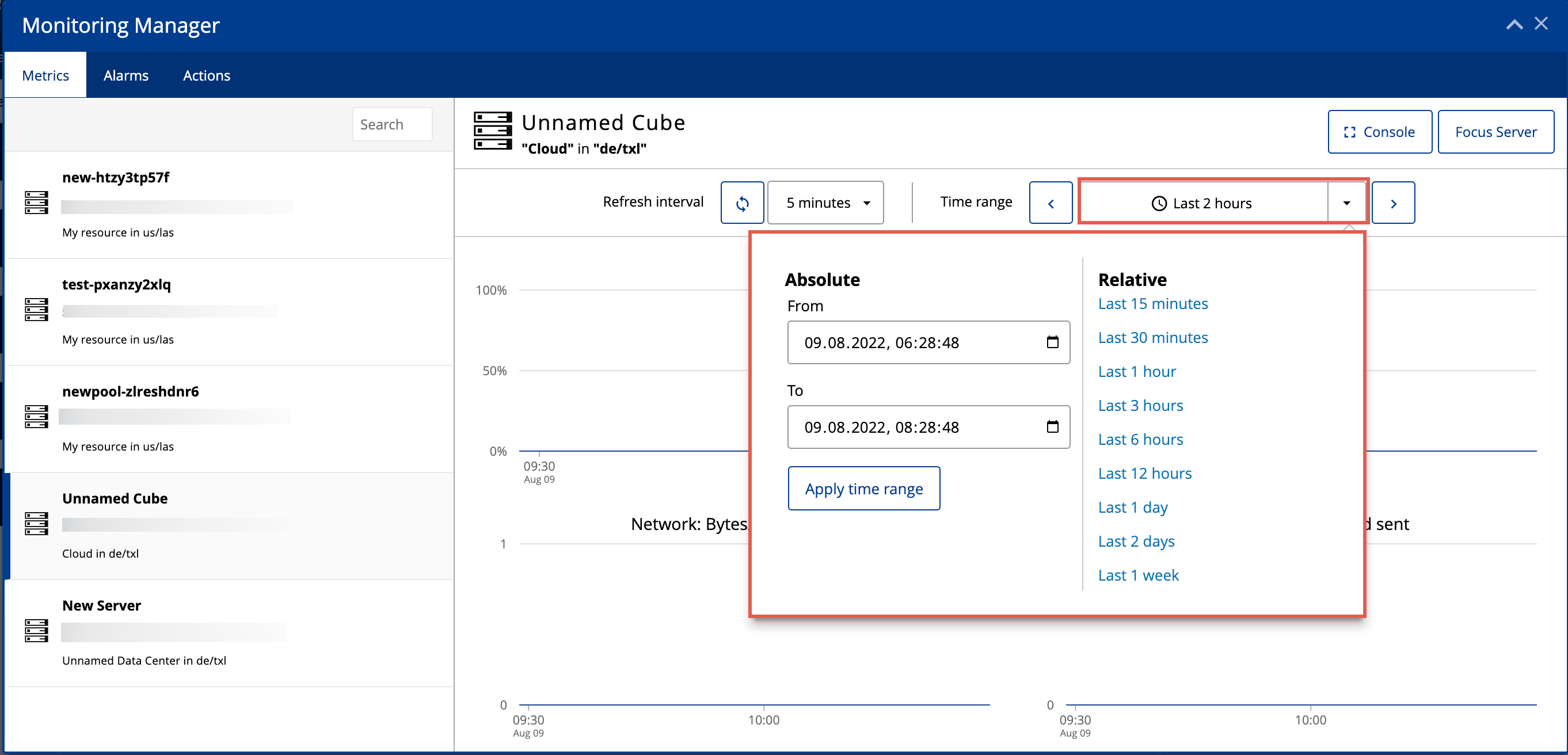

You can define a time range inside the Monitoring Manager
If you want to create a long-term history of metrics, we advise you to retrieve the raw metric data and store it. Any data older than two weeks will be purged by IONOS Cloud.
